PARTS
For inquiries, installation locations and to place your order, please reach out to [email protected] or call 303-438-0120.
We offer high-quality, OEM replacement parts for Aerodry, Worldwide Drying Systems, IDC and International Drying System models. These parts are designed to perform reliably under the harsh conditions of car washes and insure the longevity and reliability of your drying system.
We know drying systems! Contact us for help in identifying replacement parts for many Brands.
Aerodry can help with retrofit solutions, including discontinued Proto-Vest Dryers!

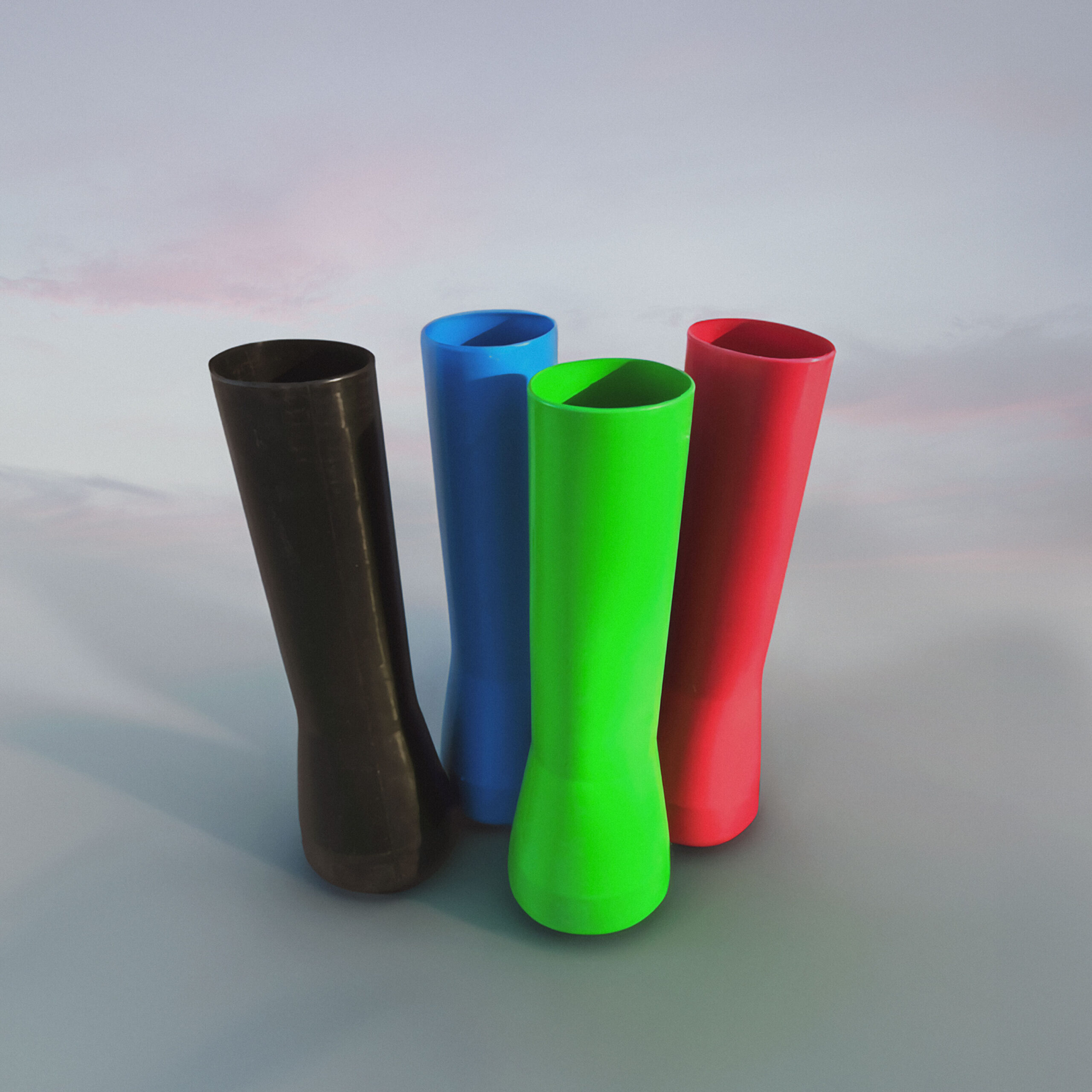

Carwash Dryer Side Nozzles
- Soft, non-marking Silicone seamless
- 6” ID reducing to 4” ID at exit
- 20” overall length (can be trimmed by operator)
- Includes worm gear clamp
- Colors: Red, blue, green, or black
- Compatible with Aerodry, Worldwide Drying, IDC, International Drying and other Brands
Carwash Blower Top Nozzles
- Soft, non-marking Silicone seamless
- 12” ID reducing to 10” ID at exit
- 18” overall length (can be trimmed by operator)
- Includes worm gear clamps
- Available in red, blue, green, or black
- Compatible with Aerodry, Worldwide Drying, IDC, International Drying and other Brands
Car Wash Dryer Motors
- ABB/Baldor, 15 HP, 3 phase, 60 Hz
- Specification #07K090R841G2, 230-460v, usable on 208v
- 3600 RPM, 254TZ frame, 1.15 SF
- Available in 575v (11 KW)
- Oversized bearings, Copper windings
- TEAO (totally enclosed, air over), no grease zerks!
- Ribbed cast body dissipates heat for increased motor life
- 3 year manufacturer warranty
- Manufactured to Aerodry specifications in Ft. Smith, Arkansas

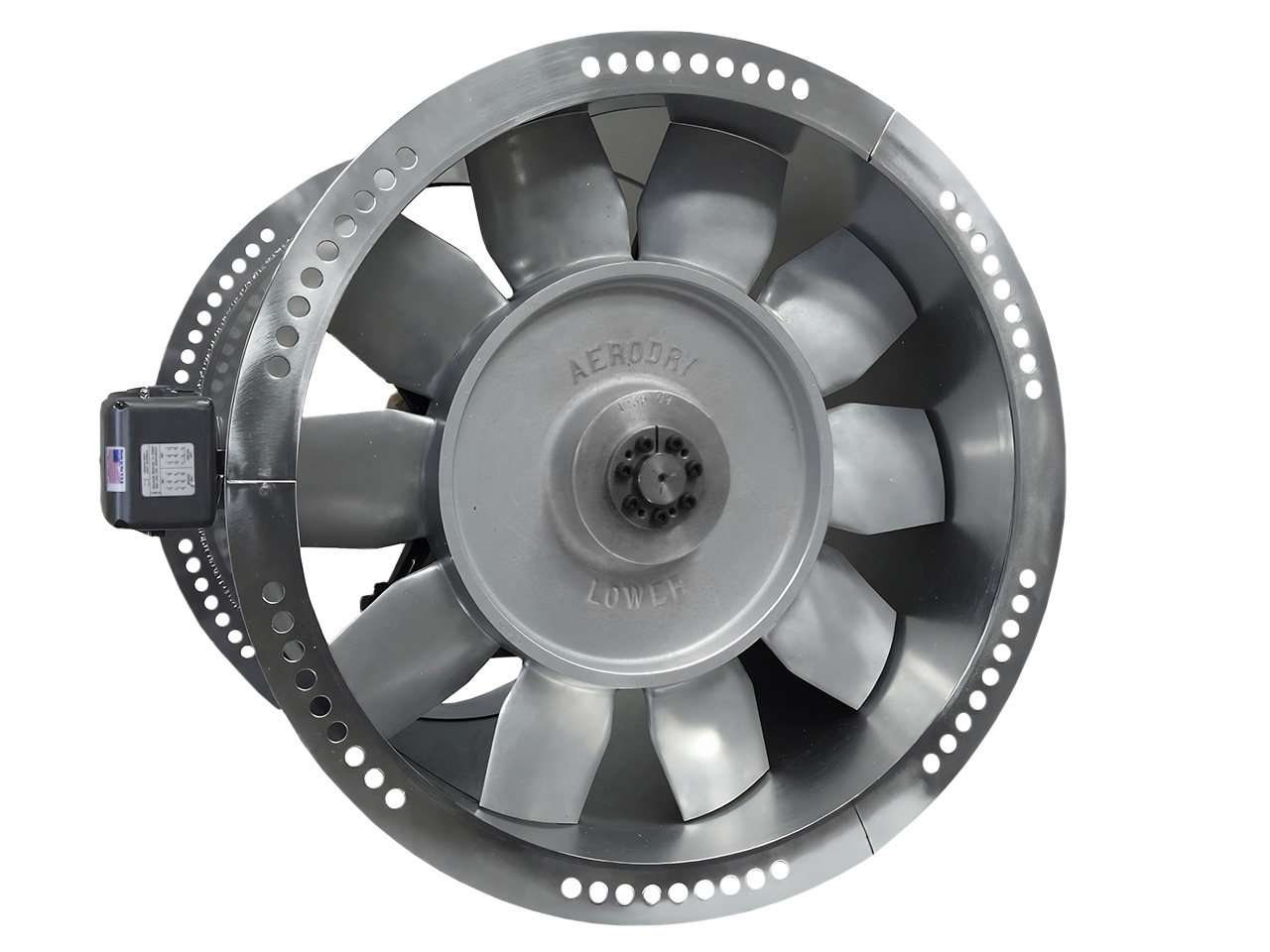

Aerodry Fan and Carwash Air Producer
Fan:
- Direct drive, light-weight (26 lbs) Axial design
- One-piece aluminum cast, Weld-free
- Resists chemical buildup, Never requires re-balancing
- Bored with 1-5/8” brass bushing
- Molded & machined in Colorado, USA
Air Producer Assembly:
- Powered by ABB 15 HP motor, manufactured to Aerodry spec in Ft. Smith, Arkansas
- Complete with motor and fan in 304 Stainless housing, ready for installation
- Replacement for Aerodry™ Systems and Worldwide Drying Systems
Taperloc Bushing
- Secures fan to motor shaft
- For 1-5/8” motor shaft
- Screw size M8
- Hex key size 6mm
- Tightening torque 30 ft-lbs
- Included with each replacement motor
Stainless Steel Junction Box
- Non-corrosive 304 Stainless Steel
- Dimensions: 4” wide x 6” tall x 5” deep
- 1 inch NPT 304 SS connection
- Custom Hoffman Brand build
- NEMA 13, IP 66, UL Listed, CSA Certified, IEC, cUL
Dryer Controls
- Variable Frequency Drive (VFD) Panels
- Across-the-Line Starter (ATL) Panels
- For quote, contact [email protected]
- Customer may also obtain panel from their own supplier to operate an Aerodry system. Please refer to motor specs when sourcing.

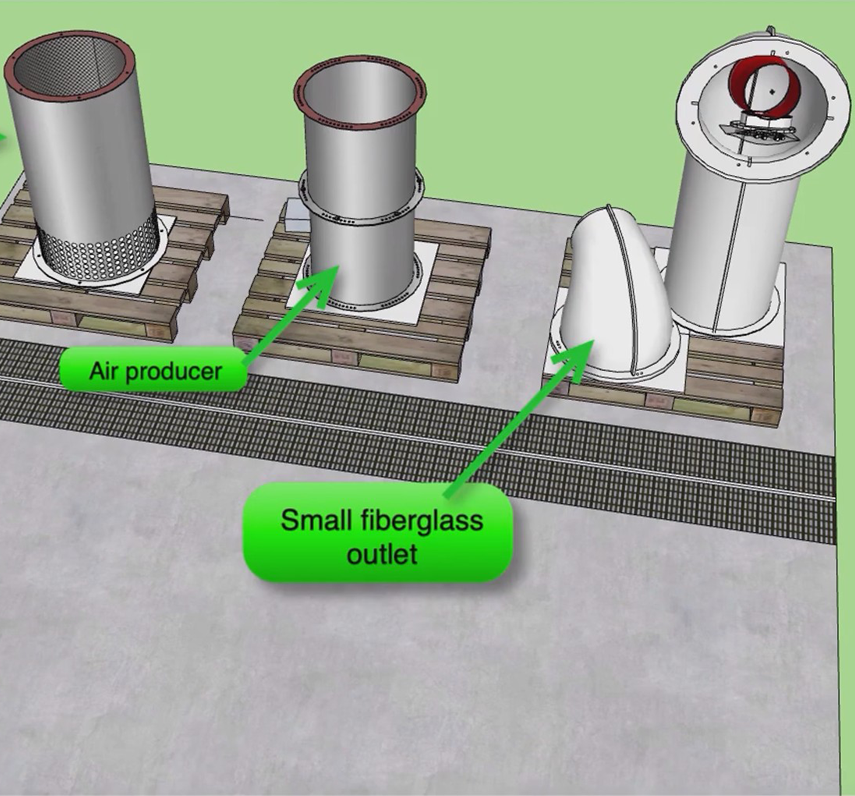

ASSEMBLY & INSTALLATION
- Standard dryer equipment has 96” height clearance, customizable before shipping
- Simple to follow instructions as well as step-by-step video instructions
- Ideal for full-service, self-service, or in-bay automatic washes
- Integrated sound abatement materials for quieter operation
- ATL or VFD panels available for enhanced performance and energy savings.
Select a Link:
– Installation Instructions
– Advantage & Base Side Dimensions
VIDEO: Advantage Top Assembly
VIDEO: Advantage Side Assembly
